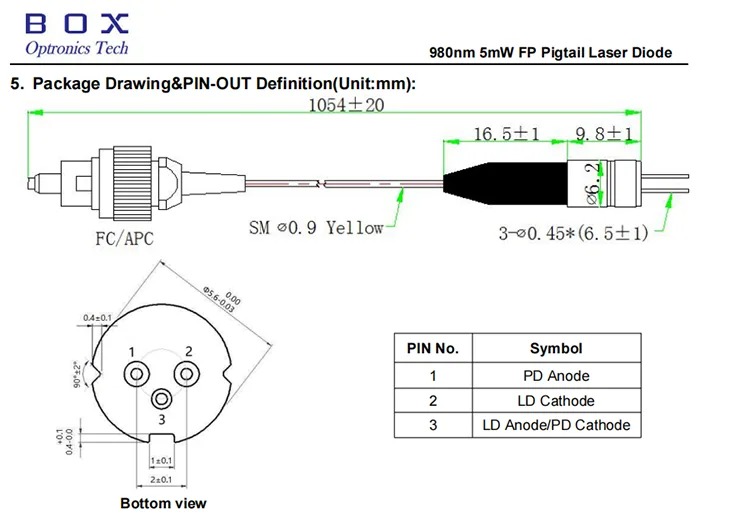

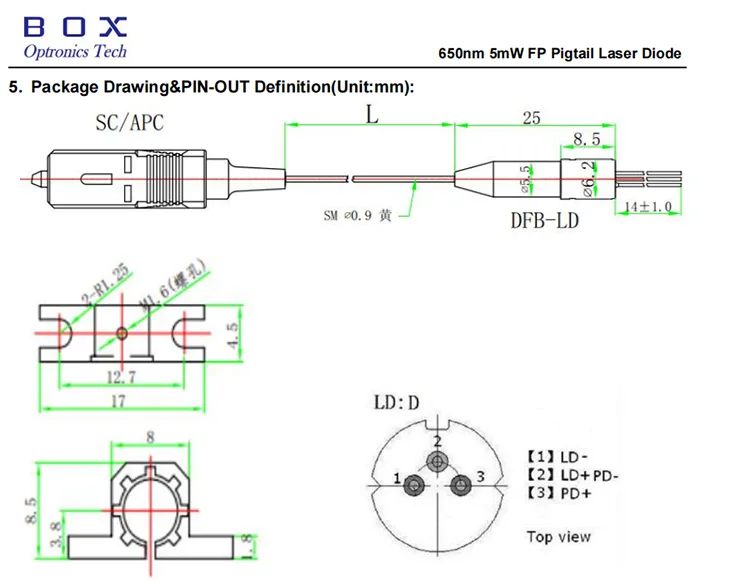

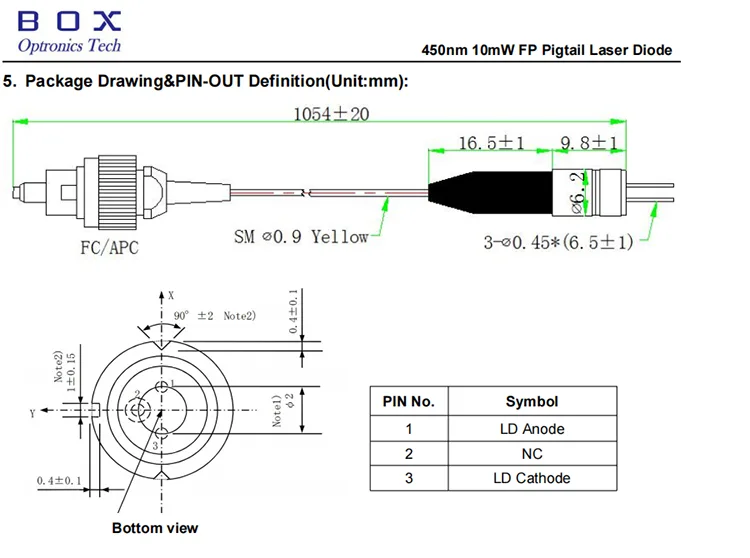

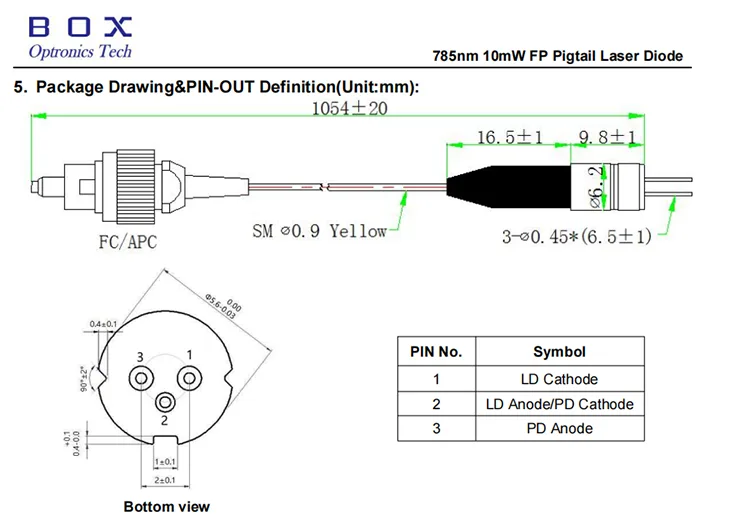

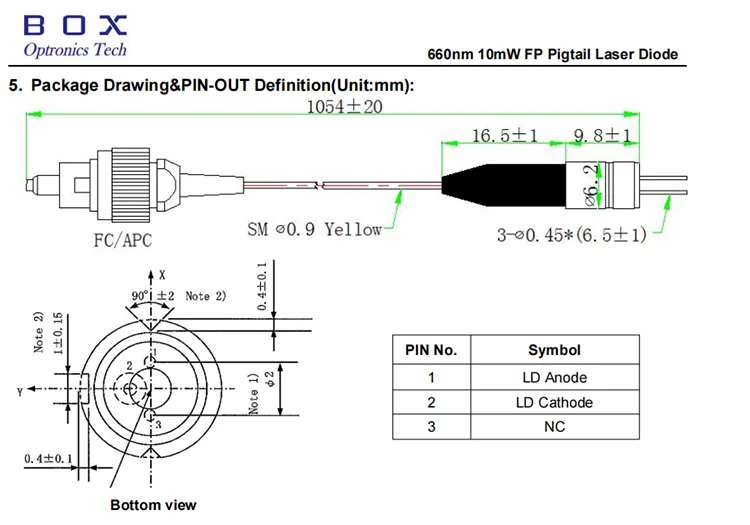

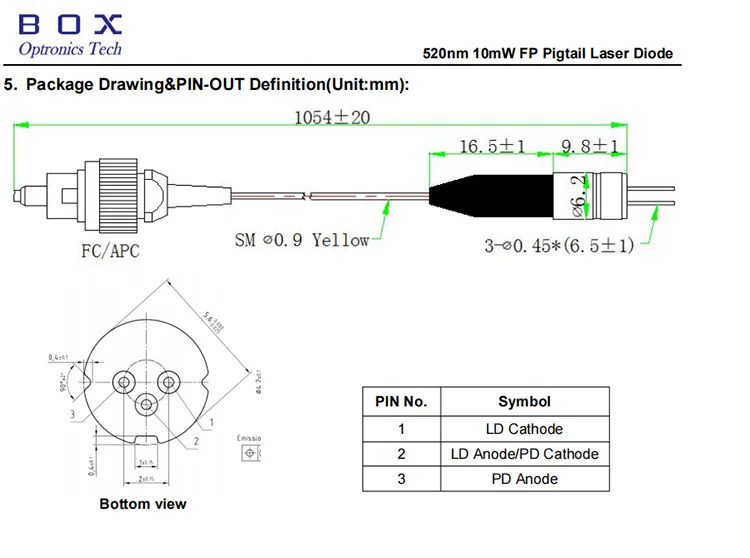

5. Package Drawing & ACUS Definition (Unit: mm)
6. Ordinare Information
7. Datasheet
8. Termini quote et solucionis
9. Ne tempus
10. Quality Assurance and After-Sales Service

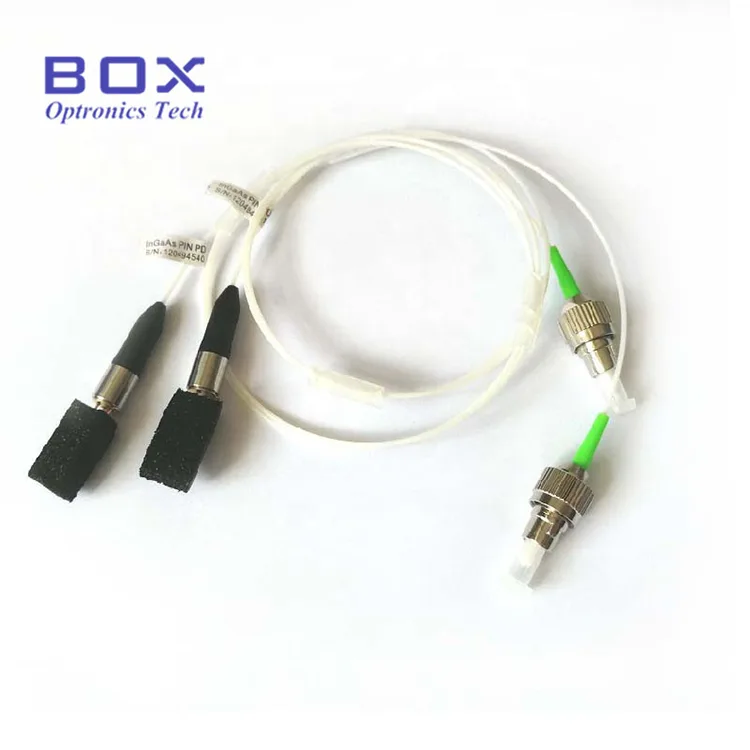

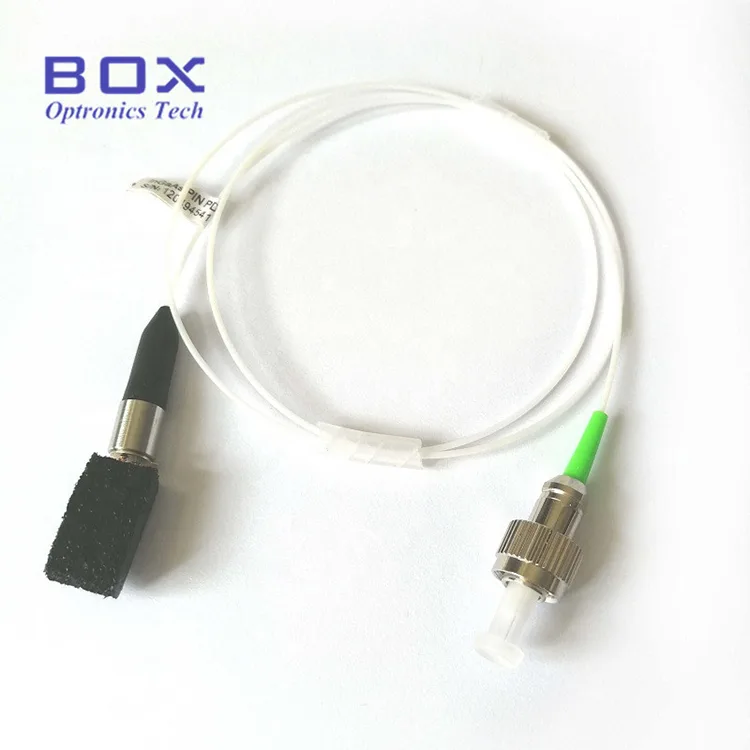

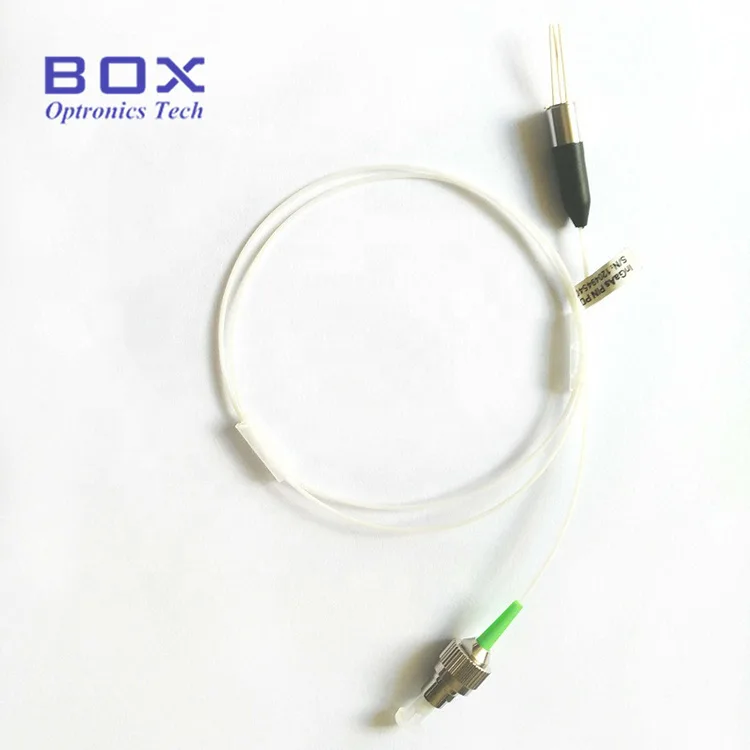

Hoc FP Coaxial Pigtail Laser Diode unus modus est Fabry-Perot laser diode, necem 450nm, 520nm, 650nm, 660nm, 785nm, 850nm, et 980nm praesto sunt, et potentia output est 5 mW vel 10 mW. Connector est FC/APC vel SC/APC. Maximum fidem et vitam longam. Telcordia GR-468 Fiducia test vexillum. Hi multi- necem FP laser diodes praebent flexibiles, certas, et altae solutiones pro variis applicationibus visibilibus et prope infrared.
|
Parameter |
Symbolum |
Test Condition |
Min |
Typ |
Max |
Unitas |
|
Centrum adsum |
λC |
POP = PF |
440 |
450 |
460 |
nm |
|
Optical output potentia |
PF |
SI = 65mA |
10 |
20 |
- |
mW* |
|
Limen current |
ITH' |
CW |
- |
22 |
40 |
ma |
|
Operans voltage |
VF |
CW |
- |
5.1 |
6.0 |
V |
|
Operans current |
SI* |
CW |
- |
70 |
90 |
ma |
|
Genus fibra |
- |
- |
460-HP |
|||
|
Parameter |
Symbolum |
Test Condition |
Min |
Typ |
Max |
Unitas |
|
Centrum adsum |
λC |
POP = PF |
510 |
520 |
530 |
nm |
|
Optical output potentia |
PF |
SI = 65mA |
5.0 |
- |
- |
mW* |
|
Limen current |
ITH' |
CW |
- |
22 |
40 |
ma |
|
Operans voltage |
VF |
CW |
- |
5.8 |
6.5 |
V |
|
Operans current |
SI* |
CW |
- |
60 |
80 |
ma |
|
Genus fibra |
- |
- |
460-HP |
|||
|
Parameter |
Symbolum |
Test Condition |
Min |
Typ |
Max |
Unitas |
|
Centrum adsum |
λC |
POP = PF |
640 |
650 |
660 |
nm |
|
Optical output potentia |
PF |
SI = 65mA |
- |
5 |
- |
mW* |
|
Limen current |
ITH' |
CW |
- |
55 |
- |
ma |
|
Operans voltage |
VF |
CW |
- |
2.1 |
2.5 |
V |
|
Operans current |
SI* |
CW |
- |
- |
105 |
ma |
|
Parameter |
Symbolum |
Test Condition |
Min |
Typ |
Max |
Unitas |
|
Centrum adsum |
λC |
POP = PF |
652 |
660 |
670 |
nm |
|
Optical output potentia |
PF |
SI = 70mA |
10 |
- |
- |
mW* |
|
Limen current |
ITH' |
CW |
- |
40 |
90 |
ma |
|
Operans voltage |
VF |
CW |
- |
2.4 |
3.0 |
V |
|
Operans current |
SI* |
CW |
- |
70 |
120 |
ma |
|
Genus fibra |
- |
- |
630HP |
|||
|
Parameter |
Symbolum |
Test Condition |
Min |
Typ |
Max |
Unitas |
|
Centrum adsum |
λC |
POP = PF |
780 |
790 |
800 |
nm |
|
Optical output potentia |
PF |
SI = 70mA |
10 |
- |
-- |
mW* |
|
Limen current |
ITH' |
CW |
- |
30 |
45 |
ma |
|
Operans voltage |
VF |
CW |
- |
1.9 |
2.2 |
V |
|
Operans current |
SI* |
CW |
- |
70 |
120 |
ma |
|
Clivo efficientiam |
SE |
CW |
1 |
1.1 |
1.2 |
W/A |
|
Monitor PD |
IM |
- |
- |
0.2 |
0.2 |
ma |
|
Genus fibra |
- |
- |
780HP |
|||
|
Parameter |
Symbolum |
Test Condition |
Min |
Typ |
Max |
Unitas |
|
Centrum adsum |
λC |
POP = PF |
840 |
850 |
860 |
nm |
|
Optical output potentia |
PF |
SI = 60mA |
10 |
- |
- |
mW* |
|
Limen current |
ITH' |
CW |
- |
16 |
20 |
ma |
|
Operans voltage |
VF |
CW |
- |
2.1 |
2.3 |
V |
|
Operans current |
SI* |
CW |
- |
45 |
60 |
ma |
|
Clivo efficientiam |
SE |
CW |
- |
0.95 |
- |
W/A |
|
Monitor PD |
IM |
- |
0.05 |
0.13 |
0.5 |
ma |
|
Genus fibra |
- |
- |
780HP |
|||
|
Parameter |
Symbolum |
Test Condition |
Min |
Typ |
Max |
Unitas |
|
Centrum adsum |
λC |
POP = PF |
965 |
980 |
990 |
nm |
|
Optical output potentia |
PF |
SI = 60mA |
5 |
- |
- |
mW* |
|
Limen current |
ITH' |
CW |
- |
12 |
20 |
ma |
|
Operans voltage |
VF |
CW |
- |
1.55 |
2.0 |
V |
|
Operans current |
SI* |
CW |
- |
30 |
50 |
ma |
|
Clivo efficientiam |
SE |
CW |
0.64 |
0.8 |
- |
W/A |
|
Monitor PD |
IM |
- |
0.08 |
0.3 |
0.5 |
ma |
|
Genus fibra |
- |
- |
Hi1060 |
|||
● Solus modus laser diode Fabry-Perot;
● Necem optiones: 450-980nm;
● Coaxial fibra-coaxa, CW operatio;
Alta commendatio, longa vita;
● Telcordia GR-468 Fiducia test vexillum.
● Indicium;
● Luce calamum;
Typographi;
● Laser laboratorium et biomedicum;
Sensus optical.
|
BLD |
-X |
XX |
XX |
X |
-XX |
|
LD |
Chiptype |
Necem |
Output potestatem |
ACUS EXTRA |
Connector |
|
Laser diode |
F: FP |
450: 450nm 520: 520nm |
10: 10mW Other |
F: Type F |
FA: FC/APC |
|
650: 650nm |
02: 2mW 05: 5mW Other |
D: Typus D |
FA: FC/APC SA: SC/APC Other |
||
|
660: 660nm 785: 785nm 850: 850nm |
10: 10mW Other |
D: Typus D |
FA: FC/APC |
||
|
980: 980nm |
5: 5mW Other |
D: Typus D |
FA: FC/APC |
eg: BLD-F78510D-FA
(Informatio ordinis: FP Coaxial Pigtail Laser Diode, 785nm 10mW, typus D pin-e, cum FC/APC iungo).
