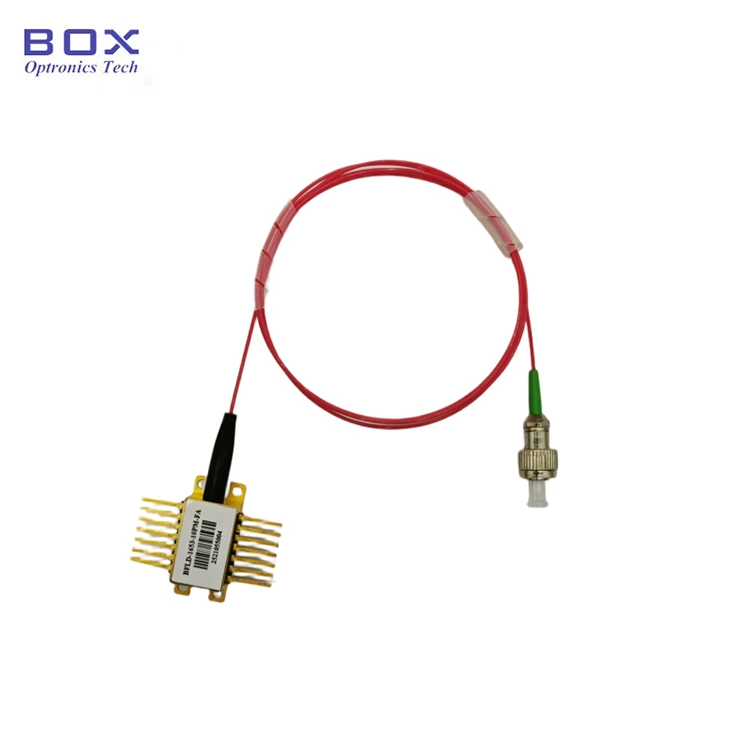

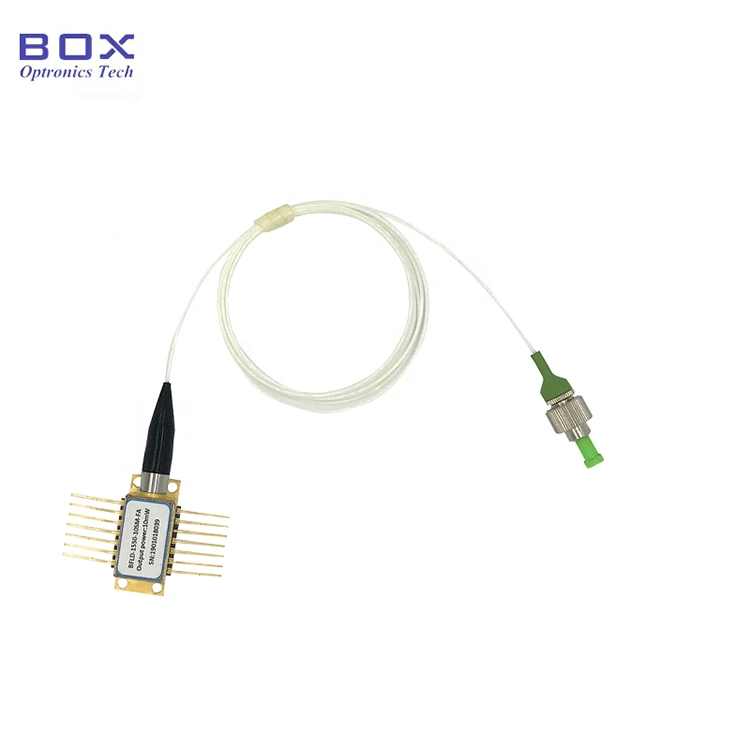

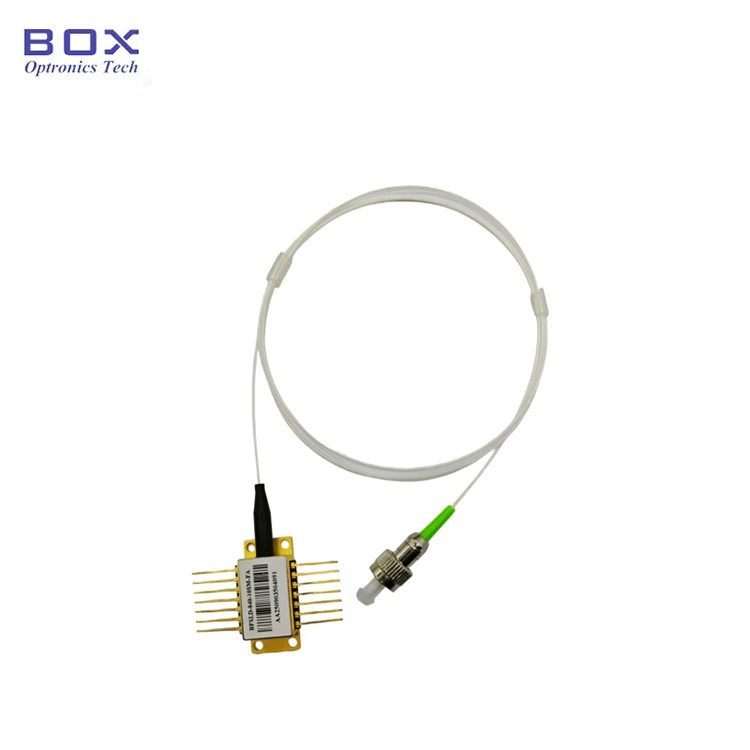

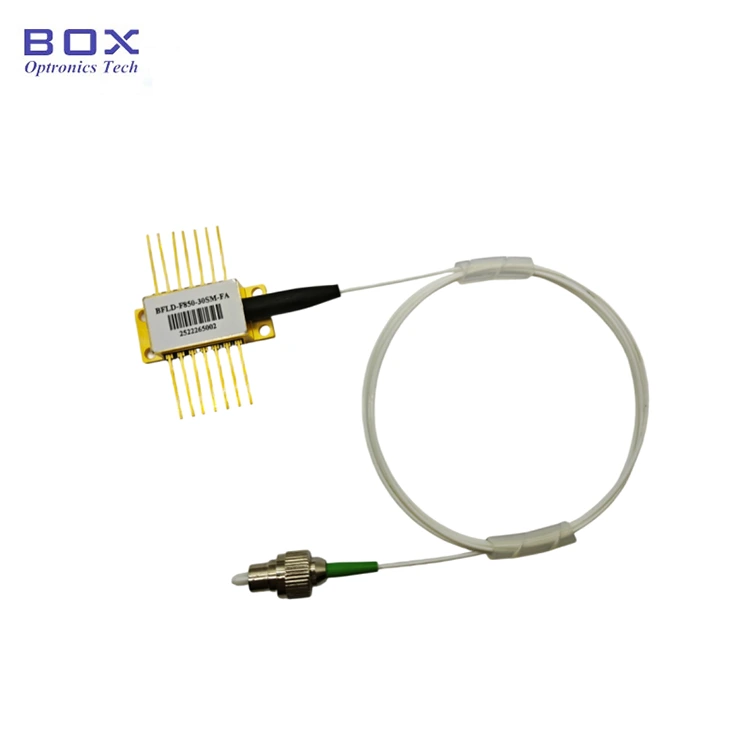

DWDM 14PIN Gloria Analogia laser pro CATV designatur cum provecto analogo chip, optical isolator, et potentia 10mW output. Packaged cum constructo-in thermoelectric frigidiori (TEC) et monitor photodiode, tradit excellens linearitas, distortio humilis, et stabilitas superior necem elytrorum DWDM malesuada euismod. Si fibulae solidamentum exigunt, temperatura solidanda est non excedunt 260°C, tempusque solidandi non excedunt 10 seconds.
|
Parameter |
Symbolum |
Conditio |
Min. |
Typ. |
Maximilianus. |
Unitas |
|
operating adsum |
λ |
ITU Grid |
Vide ITU Grid |
nm |
||
|
Optical output potentia |
PF |
- |
6 |
- |
20 |
mW* |
|
Limen current |
ITH' |
25℃ |
- |
- |
20 |
ma |
|
Operans current |
IOP |
- |
- |
- |
120 |
ma |
|
Operans voltage |
VOP |
25℃ |
- |
- |
2.5 |
V |
|
Parte modus suppressionis ratio |
SMSR |
- |
30 |
- |
- |
dB* |
|
Optical reditus damnum |
ORL |
- |
40 |
- |
- |
dB* |
|
Optical solitudo |
ISO |
25℃ |
30 |
- |
- |
dB* |
|
Polarization exstinctio ratio |
ER |
AM fibra |
18 |
- |
- |
dB* |
|
MPD Dark current |
ID |
IOP=0mA, VRM=5V |
- |
- |
0.2 |
μA |
|
MPD Current ad output potentia |
- |
VRM=5V |
10 |
- |
200 |
mA/W* |
|
TEC Voltage |
VTEC |
- |
-2.5 |
- |
3.8 |
V |
|
Bandwidth |
BW |
- |
- |
2.5 |
- |
GHz |
|
Thermistor resistentia |
RTH |
25℃ |
9.5 |
10 |
10.5 |
kΩ |
|
Thermistor B-valorem |
β |
25℃/80℃ |
- |
3950 |
- |
K |
|
Carrier-ut-Noise ratio |
CNR |
- |
55 |
- |
- |
dB* |
|
Secundum ordinem compositum |
CSO |
- |
- |
- |
-55 |
dBm |
|
Compositum triplum pulsum |
- |
- |
- |
- |
-64 |
dBc* |
● Fibra genus potest esse SMF-28e aut PMF-1550;
● Output power 10mW or customized;
● 14-pin Involucrum BTF cum TEC et Monitor PD.
● Fibra communicatio optica;
● systemata DWDM;
● Catv tradenda;
● Laboratorium test armorum.
ITU Grid Channel Numbering
|
Channel |
Necem (um) |
Channel |
Necem (um) |
Channel |
Necem (um) |
|
64 |
1526.44 |
47 |
1539.77 |
30 |
1553.33 |
|
63 |
1527.22 |
46 |
1540.56 |
29 |
1554.13 |
|
62 |
1527.99 |
45 |
1541.35 |
28 |
1554.94 |
|
61 |
1528.77 |
44 |
1542.14 |
27 |
1555.75 |
|
60 |
1529.55 |
43 |
1542.94 |
26 |
1556.56 |
|
59 |
1530.33 |
42 |
1543.73 |
25 |
1557.36 |
|
58 |
1531.12 |
41 |
1544.53 |
24 |
1557.17 |
|
57 |
1531.90 |
40 |
1545.32 |
23 |
1558.98 |
|
56 |
1532.68 |
39 |
1546.12 |
22 |
1559.79 |
|
55 |
1533.47 |
38 |
1546.92 |
21 |
1560.61 |
|
54 |
1534.25 |
37 |
1547.72 |
20 |
1561.42 |
|
53 |
1535.04 |
36 |
1548.51 |
19 |
1562.23 |
|
52 |
1535.82 |
35 |
1549.32 |
18 |
1563.05 |
|
51 |
1536.61 |
34 |
1550.12 |
- |
- |
|
50 |
1537.40 |
33 |
1550.92 |
- |
- |
|
49 |
1538.19 |
32 |
1551.72 |
- |
- |
|
48 |
1538.98 |
31 |
1552.52 |
- |
- |

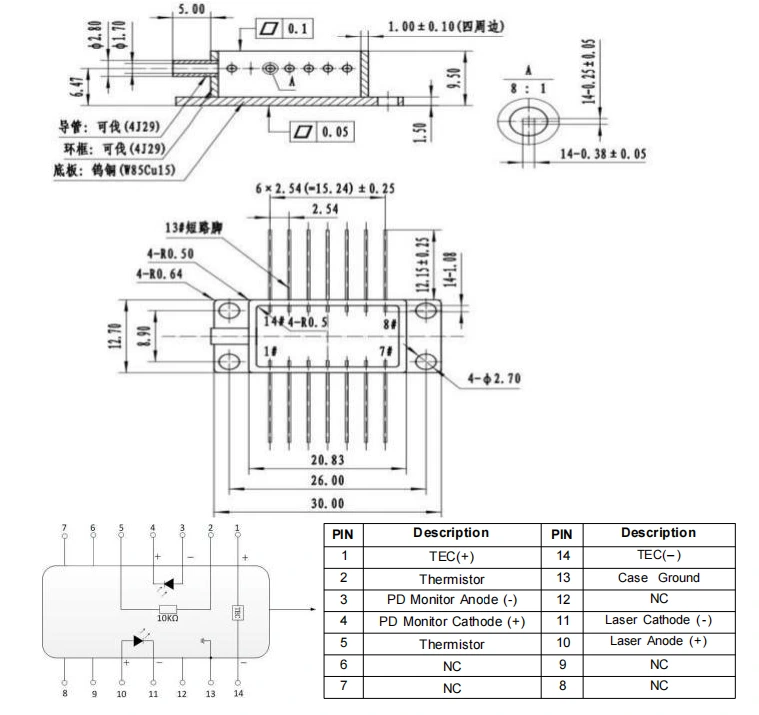

Type I Package Drawing & ACUS Definitio (Unit: mm): DWDM 14PIN Papilio Analog Laser pro CATV

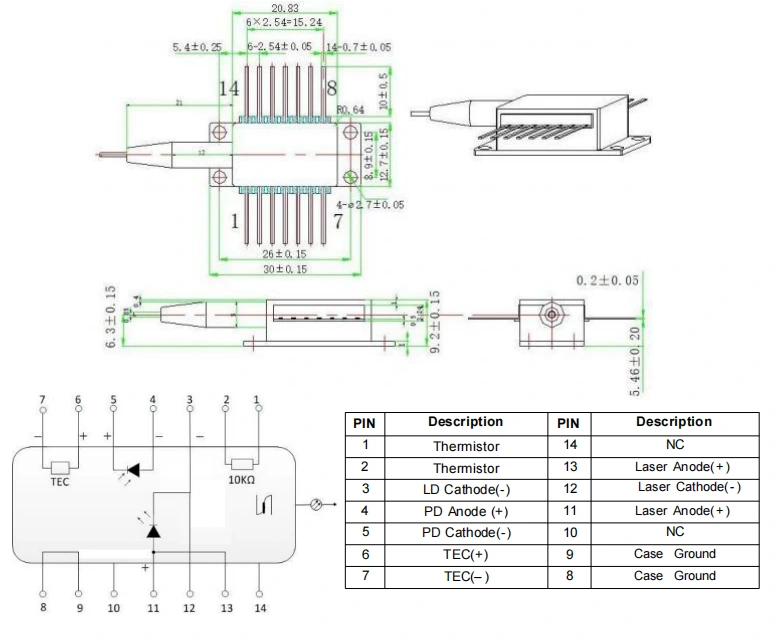

Typus II Package Drawing & ACUS Definitio (Unit: mm) -DWDM 14PIN Papilio Analog Laser pro CATV
|
Nomen |
Necem |
Output potentia |
Genus fibra |
Connector |
PIN-E) |
|
BFLD |
-CHXX |
-XX |
-XX |
-XX |
X |
|
DWDM |
CH34:1550.12nm CH59:1530.33nm CHXX: DWDM |
10:10mW nativus |
SM :Singlemode PM : Polarization maintaining |
FA: FC/APC SA: SC/APC Other |
NULL: Type 1 2: Typus 2 |
eg: BFLD-CH56-10SM-FA
(Ordinis notitia: DWDM 14PIN Papilio Analogia Laser pro CATV, CH56: 1532.68nm, 10mW output power, SM fibra, FC/APC connector, type1 pin-out).
Ad alia nativus requisita, pete contactum: sales06@boxoptronics.com
Terms of quote
(1) EXW:
Si DHL / UPS / FedEx ratione, Box Optronics suadeant utens ad EXW. Nos per rationem vestram navem; non arguere naves pretium.
(2) DAP:
Si rationem non habes, quaeso pretium naves prepay producta.
(3) Alii
Termini solucionis
PayPal et T/T praesto sunt.
Circiter X dies operantes productio capit. (Si quae sunt in stirpe, velocius uit).
Logistics internationales capere possunt 3-5 dies operantes.
ESD Praesidium: Hoc est fabrica electrostatic-sensitivo. Ideo stricte anti-staticae tutelae mensurae debent in fasciculo, translatione et usu adhaerendum. Accedit, cavendumque est, ne aestus copia, ut negligentia, fiat inveniatur in permanent damnum ad machinam (exampla, curare propriis apparatibus grounding and wear an anti-static carpi lorum).
Pin Soldering Requisita: si paxillos solidari necesse est, temperatura solidatoria CCLX°C excedere non debet; solidatorium tempus non excedunt X seconds. Peculiari attentione sequenti: durante processu solidandi, machinatio in impotenti esse debet status, et ferrum solidale rite fundatum est.
Applicare current: Per potentiam-sursum processus, numquam altam venam directe applicat, ut hoc periculum deminutio chip. Potius, fabricare machinam in gradu currenti prope limen chip, et paulatim currentem in parvis incrementis auget usque ad desideratum gradu ventum est.

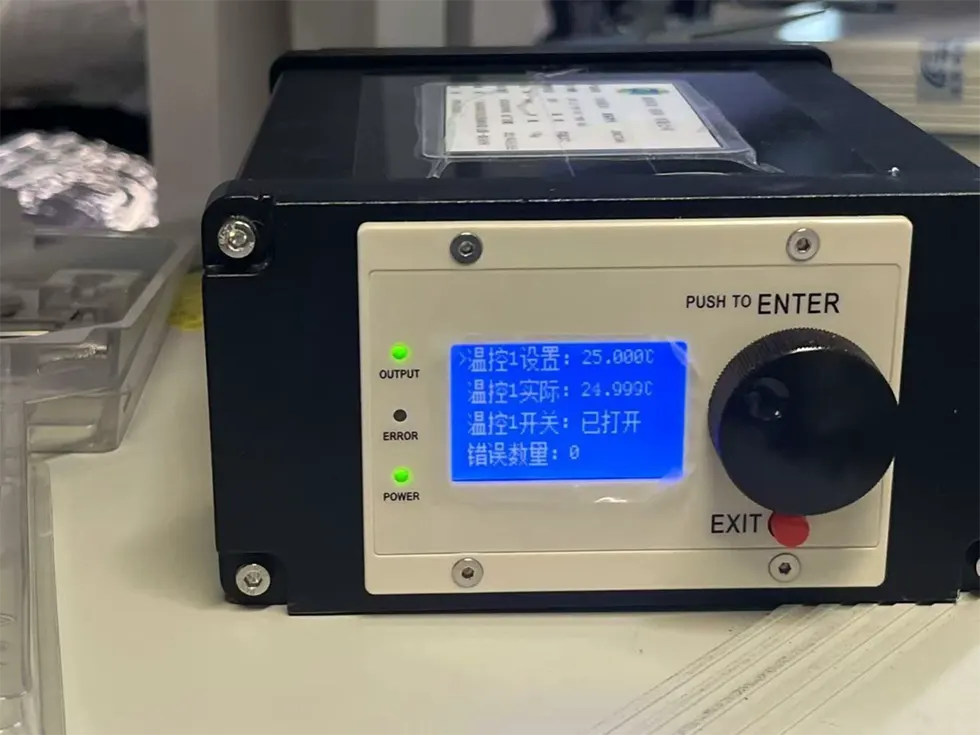

● TEC frigidior Thracam: Ante omnia membra posse, Primum eu frigidior Thracam, deinde cum incremental potestate gradus ad Ne chip overheating et onerare.
tempus Suspendisse:
Free reparatione vel reposito pro non-humano defectus effecerunt intra 1 anno ab emptio. Mercedem sustentationis officia praesto post 1 annum.
Exclusiones a Suspendisse libero:
Per liberum tempus praestat, officia libera reparatione vel reposito providebitur enim culpae per qualitatem productam proventus. Sed Box Optronica ius retinet recusandi gratuita officia reparandi in sequenti de casibus infra tempus praestat;
(I) Damnum natura (exampla, fulgur, pulvis) or * influxibus environmental.
(2) Malfunctiones ob impropriam operationem utentis.
(3) Patet damnum corporis humani erroris causatum.
(4) Alienum disassembly, immutatio vel reparatio.
(5) Mutata vel incompleta titulus in habitationem praestat.
(VI) damnum vel damnum per translationem.
Oratio
