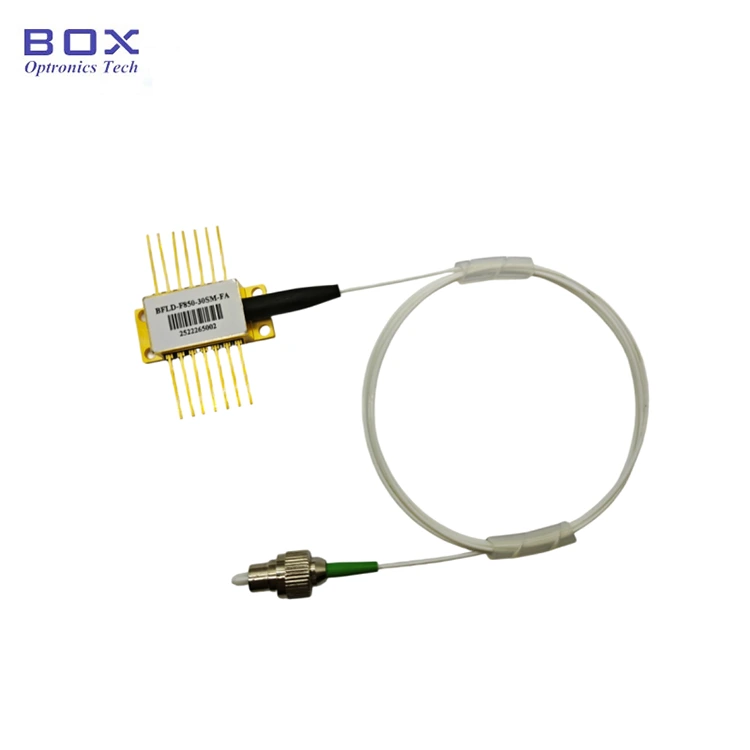

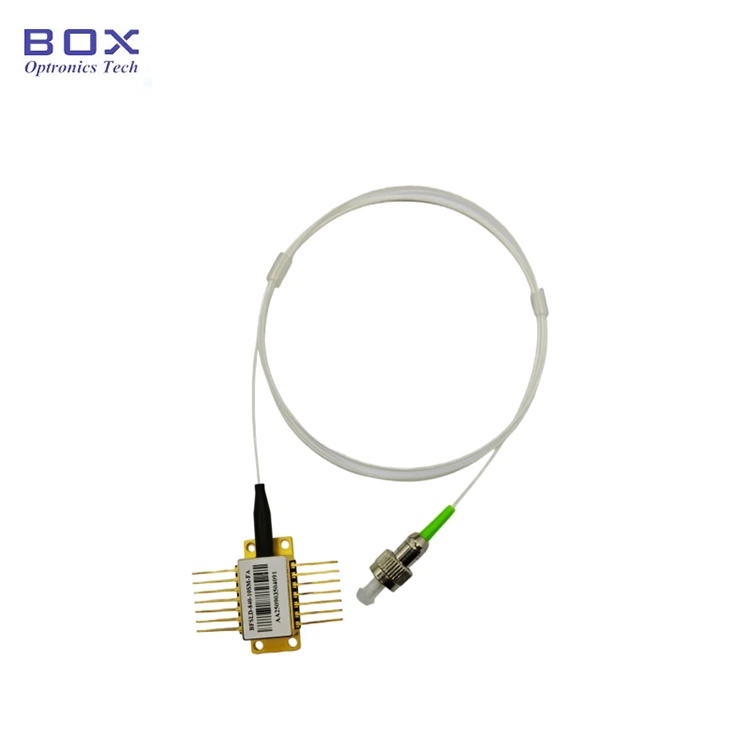

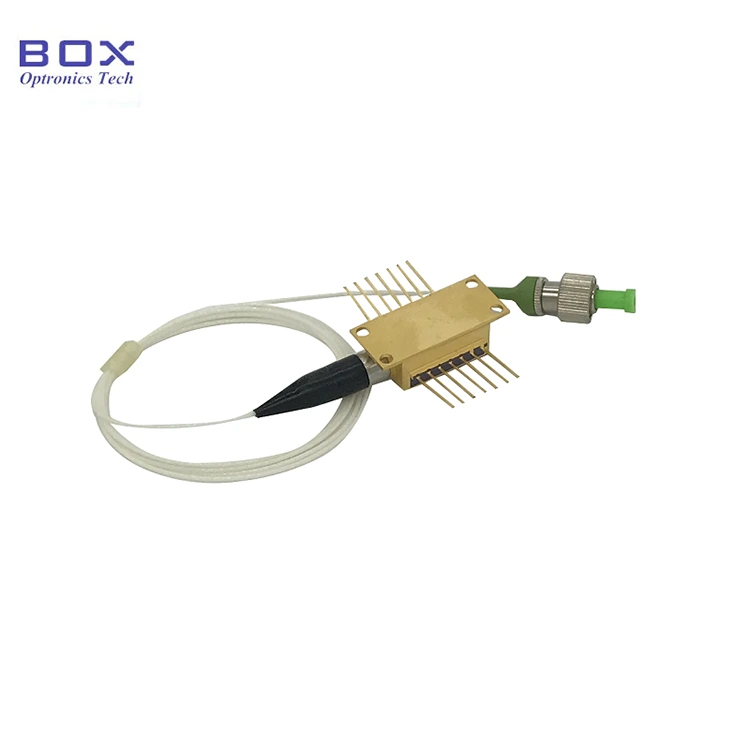

Haec est LAN-WDM 10mW Fibra Laser cum an Copulata industria-vexillum 14-pini papilio sarcina quae integrat constructum-in TEC, optical isolator, and thermistor. Is lineamenta ad 10mW output potentiam pertinent, +/-1nm necem tolerantia, et humilem limen vena. Est specimen pro C/DWDM systemata; über sensoriis optici et applicationum laser fons.
|
Parameter |
Symbolum |
Conditio |
Min. |
Typ. |
Maximilianus. |
Unitas |
|
Centrum adsum |
λ |
TL=15～35℃ CW |
fec-1 |
λ |
fec + 1 |
nm |
|
Optical output potentia |
PO |
TL=15～35℃ CW |
10 |
- |
- |
mW* |
|
Limen current |
ITH' |
CW |
- |
9 |
13 |
ma |
|
LD Deinceps current |
SI* |
PF = Rated Power |
- |
80 |
100 |
ma |
|
LD Deinceps voltage |
VF |
PF = Rated Power |
- |
- |
1.5 |
V |
|
Parte-modus suppressionis ratio |
SMSR |
CW |
35 |
40 |
- |
dB* |
|
Optical solitudo |
- |
-10 < TC < +70℃ |
30 |
35 |
- |
dB* |
|
Monitor responsabilitas |
IM/PF |
- |
- |
1 |
20 |
μA/mW |
|
Monitor responsabilitas stabilitas |
- |
- |
- |
- |
20 |
% |
|
Monitor tenebris current |
ID |
VPD=5V |
- |
- |
50 |
nA |
|
TEC Current |
ITEC |
TL = 25℃, TC = 70℃ |
- |
0.6 |
2.0 |
A |
|
TEC Voltage |
VTEC |
TL = 25℃, TC = 70℃ |
- |
1.3 |
3.5 |
V |
|
TEC consummatio |
P |
TC = 75℃ |
- |
- |
5 |
W |
|
Thermistor resistentia |
RTH |
TC = 25℃ |
9.5 |
10 |
10.5 |
Kohm |
|
Thermistor B constant |
BTH |
TC = 25℃ |
- |
3900 |
- |
K |
|
Fluctus. temp. coefficiens |
λ/ΔT |
0℃ |
- |
- |
0.09 |
nm/ |
|
Fluctus. current coefficiens |
λ/ΔΙ |
20℃ |
0.07 |
- |
0.12 |
nm/mA |
● Multiquantum bene (MQW) distribui-feedback (DFB) laser
● SM fibra vel PM fibra pigtail;
● 10mW output power;
● 14-pin BTF involucrum cum TEC, optical isolator; thermistor et monitor PD.
●
C/DWDM systemata;
● Fontes laser
● CATV RATIONIS ;
● Fibra sensoria optica.
Channel numerus et adsum
|
Channel No. |
fec (nm) |
Channel No. |
fec (nm) |
Channel No. |
fec (nm) |
|
LA01 |
1266.50 |
LA08 |
1296.50 |
LA15 |
1315.50 |
|
LA02 |
1271.50 |
LA09 |
1301.50 |
LA16 |
1320.50 |
|
LA03 |
1276.50 |
LA10 |
1304.58 |
LA17 |
1325.50 |
|
LA04 |
1281.50 |
LA11 |
1306.85 |
LA18 |
1330.50 |
|
LA05 |
1286.50 |
LA12 |
1309.14 |
LA19 |
1335.50 |
|
LA06 |
1286.66 |
LA13 |
1310.50 |
LA20 |
1340.50 |
|
LA07 |
1291.50 |
LA14 |
1311.43 |
LA21 |
1345.50 |

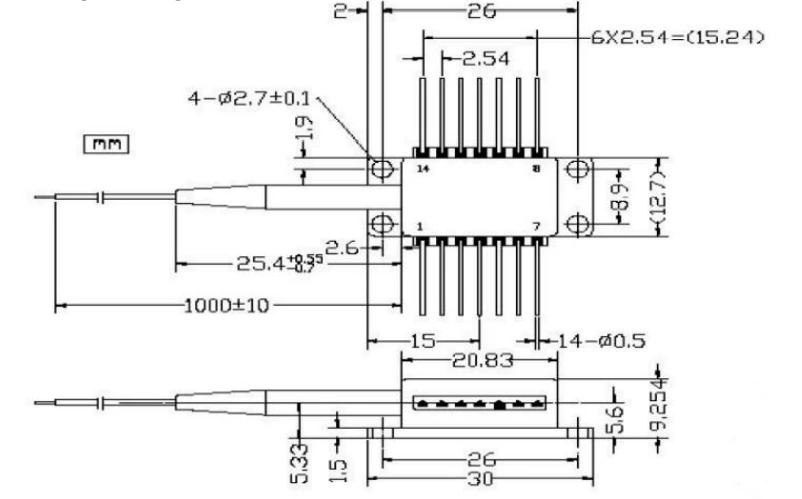

Package drawing (Unit: mm);

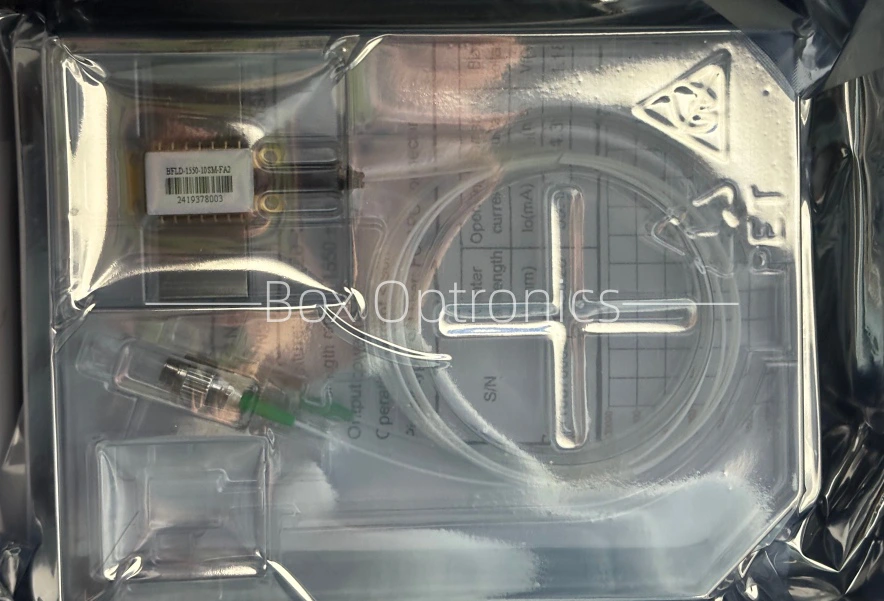

Packing example
|
|
Accessories |
quantitas |
|
1 |
LAN-WDM 10mW Fibra Copulata Laser |
1 |
|
2 |
Product Test Report |
1 |
|
Nomen |
Necem |
Output potentia |
Genus fibra |
Connector |
PIN-E) |
|
BFLD |
-LAXX |
-XX |
XX |
-XX |
X |
|
DFB laser |
LA01:1266.50nm LA02:1271.50nm |
10:10mW nativus |
SM: Singulus modus AM: Polarizationem obtinendam |
FA: FC/APC SA: SC/APC Other |
NULL: Type 1 2: Typus 2 |
eg: BFLD-LA13-10SM-FA
(Ordo informationis: LAN-WDM 10mW Fibra Copulata Laser, 14-pinna papilio sarcina, 1310.50nm, 10mW output power, cum SM fibra, FC/APC connector, type1 paxillus e).
Ad alia nativus requisita, pete contactum: sales06@boxoptronics.com
Terms of quote
(1) EXW:
Si DHL / UPS / FedEx ratione, Box Optronics suadeant utens ad EXW. Nos per rationem vestram navem; non arguere naves pretium.
(2) DAP:
Si rationem non habes, quaeso pretium naves prepay producta.
(3) Alii
Termini solucionis
PayPal et T/T praesto sunt.
Circiter X dies operantes productio capit. (Si quae sunt in stirpe, velocius uit).
Logistics internationales capere possunt 3-5 dies operantes.
● Quae res electrostatic-sensitiva est; Ergo adhaesionem stricte ad praesidium anti-staticum requiritur in packaging, vectura, consuetudo. Praeterea providendum est ne potentiae copia aestuat, ut defectum in damno permanentium inveniatur machinam (exampla, cursus propriis apparatu præcomprehensio et circumdatio anti-static lorum carpus).
● Quin stabilitas productum est scriptor operating circuitu ne damnum venarum excursus.
● Fibrae opticae fragiles sunt; non uteris fibra ad machinam trahere. Cum figmentum inserendo vel removendo e neruo suo, pressionem non applicamus vel manica in tergo sita habitationi machinam trahere. Nam cogitationes iungo instructus, ut et fibrarum fabrica et iungo simul elevantur per institutionem vel remotionem.
cum fabrica utens, intentioni operanti stricte inhaeret vena iugis certa in datasheet. Key parametri, inter Ith (Limen Current), Iop max (Maximum Operating Current), Vop max (Maximum) Operans intentione), et λc (Centre necem) referendum sit nominatim in test fama tempore provisum est shipment.Note: Operation ultra absolutum maximum ratings damnum permanens in fabrica causare potest.
